Air compressor units

Gruppo Gruppi_2

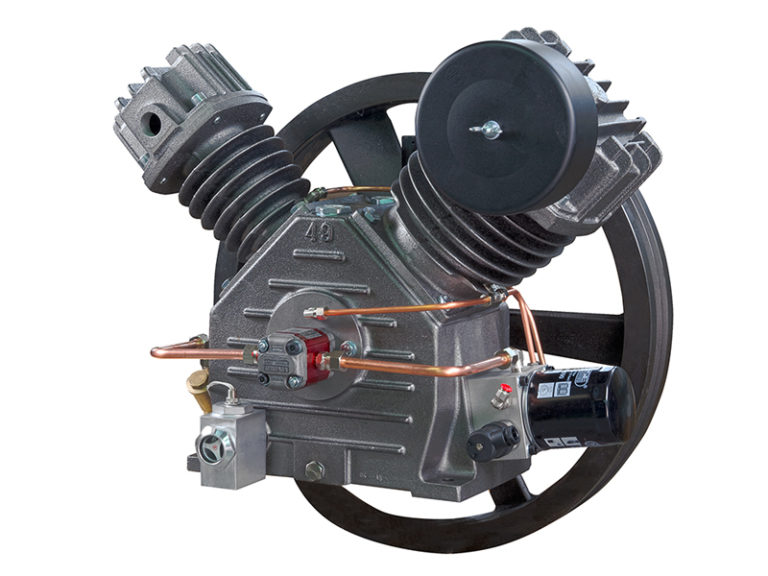

Since 1959, PARISE COMPRESSORI has been designing and manufacturing piston compressor units. A project that preserves the tradition and quality of the past, while remaining in constant evolution and improvement. Precise mechanical processing is carried out using operator units and CNC machining centers, ensuring perfect manufacturing and long-term interchangeability of components. The adopted technical solution of two-stage compression and a low rotation speed ensures compressed air production at a temperature about 20 degrees lower and an air yield approximately 30% higher compared to single-stage units. The V-shaped arrangement of special nickel-copper cast iron cylinders improves cooling and machine balance. The heads containing automatic disc valves are made of special cast iron or steel. The crankshaft is made of spheroidal cast iron, according to the latest automotive engineering techniques. Lubrication is automatic, splash type. The piston rings are made of special high-strength cast iron, nitrided to enhance their wear resistance. After extensive and meticulous testing, it can be stated that compressor units made with cast iron alloys possess superior and irreplaceable physical and technological qualities, more than offsetting the higher initial cost.

Models:

Request information
Single cylinder direct driven compressor pumps with thermal protection
codemodelintake air l/1power HPpower kWRPMpressure barDescriptiontensionweightdimension

CREATE YOUR CATALOG
CREATE PDF
2101110040P52/1Cm12010,7514008COMPRESSOR UNIT P 52/1 CM230/1/501523x37x33
2101110050P52/2Cm x P25Sacm24021,514008COMPRESSOR UNIT P 52/2 CM230/1/502034x45x27
2101110060P52/2SCm-112 x P100Acm2502,51,814008COMPRESSOR UNIT P 52/2 SCM-112230/1/502134x45x27
2101110080P52/2Cm-112 x P50Acm24021,514008COMPRESSOR UNIT P 52/2 Cm-112230/1/502034x45x27
2101110090P52/2Cm-132 x P30-50Acm Box24021,514008COMPRESSOR UNIT P 52/2 Cm-132 for P30/50ACM-BOX230/1/502034x45x27
2101110100P52/2Scm-132 x P100Acm Box2502,51,814008GRUPPO COMPRESS. P 52/2 Scm-132 per P100ACM-BOX230/1/502234x45x27
2101110110P52/2Cm-246 x Sv30Acm24021,514008COMPRESSOR UNIT P 52/2 Cm-246 for SV30/ACM230/1/502134x45x27
2101130020P52/2Ct x P25Sact24021,514008COMPRESSOR UNIT P 52/2 Ct400/3/502034x45x27
2101130040P52/2SCt-112 x P100Act2502,51,814008GRUPPO COMPRESS. P 52/2 SCt-112400/3/502034x45x27
2101130050P52/2Ct-112 x P50Act24021,514008COMPRESSOR UNIT P 52/2 Ct-112400/3/502034x45x27
2101130060P52/2Ct-246 x Sv30Act24021,514008COMPRESSOR UNIT P 52/2 Ct-246 for SV30/ACT400/3/502134x45x27
2101130070P52/2 SCT-132 x P100 ACT Box2502,51,814008GRUPPO COMPRESS. P 52/2 SCt-132 per P100ACT-BOX400/3/502034x45x27
2101130110P52/2 SCT-132 x P30-50 ACT Box2502,51,814008400/3/502034x45x27-
2101110010P45/1CHm1421,51,128008COMPRESSOR UNIT P 45/1 CHm230/1/501318x33x31
2101110020P52/1CHm19021,528008COMPRESSOR UNIT P 52/1 CHm230/1/501318x33x31
2101110030P52/1CZm2402,51,828008COMPRESSOR UNIT P 52/1 CZm230/1/501418x33x31
2101110070P52/1Cmk1901,51,128008COMPRESSOR UNIT P 52/1 CMK230/1/501523x37x33
2101130010P52/1Ct12010,7514008COMPRESSOR UNIT P 52/1 CT400/3/501523x37x33
2101130030P52/1Ctk1901,51,128008COMPRESSOR UNIT P 52/1 CTK400/3/501523x37x33

Single stage belt driven compressor pumps single cylinder
codemodelintake air l/1power HPpower kWRPMpressure barDescriptiontensionweightdimension

CREATE YOUR CATALOG
CREATE PDF
2102140060P 110/1101640107,510008COMPRESSOR UNIT P 110/110-5662x42x53
2102140070P 110/110 SCP1640107,510008COMPRESSOR UNIT P 110/110 SCP5862x42x53-
2102140010P52/112010,7514008COMPRESSOR UNIT P 52/1-623x37x32
2102140020P60/11601,51,114008COMPRESSOR UNIT P 60/1-726x21x35
2102140030P52/22001,51,112008COMPRESSOR UNIT P 52/2-935x23x31
2102140040P60/228021,512008COMPRESSOR UNIT P 60/2-935x23x31

Two-stage belt driven compressor pumps
codemodelintake air l/1power HPpower kWRPMpressure barDescriptionweightdimension

CREATE YOUR CATALOG
CREATE PDF
2102240120P 60/120 SCP**131212,59128710GRUPPO COMPRESS. P 60/120 SCP7968x52x60
2102240100P 52/105S7507,55,5110010COMPRESSOR UNIT P52/105S2838x33x58
2102240050P 60/110 SCP**10007,55,5115010COMPRESSOR UNIT P 60/110 SCP5359x41x45
2102240070P 60/110 S*8907,55,5110010COMPRESSOR UNIT P 60/110 S5259x41x45
2102240090P 60/110 P950107,5115010COMPRESSOR UNIT P60/110P5359x41x45
2102240140P60/110-SV8407,55,5106010COMPRESSOR UNIT P 60/110 for COMPRESSOR SV5359x41x45
2102240150P60/120-SV1173107,5115010COMPRESSOR UNIT P 60/120 for COMPRESSOR SV7768x52x60
2102240080P 60/120S*131212,59128710COMPRESSOR UNIT P 60/120 S7868x52x60
2102240060P 60/1201173107,5115010COMPRESSOR UNIT P 60/1207768x52x60
2102240020P 43/85S38003-apr2,2-3900-110010COMPRESSOR UNIT P 43/85 S1524x30x35
2102240030P 52/1056704-5,503-apr90010COMPRESSOR UNIT P 52/1052738x33x58
2102240040P 60/1108407,55,5106010COMPRESSOR UNIT P 60/1105359x41x45
2102240160P 43/85S per SV-SO34003-apr2,2-3900-1100101524x30x35-
