Air compressors on tank

Home / Pistons air compressors / Air compressors on tank

COAXIAL COMPRESSORS

These models have been designed with an electric motor directly coupled to the compressor unit. They are technically advanced, powerful and quiet machines. They are very compact, require minimal supervision and little maintenance. They are ideal compressors for small painting jobs, washing and inflation for all the tasks of a small business. The cylinders are made of special cast iron, lubrication is automatic by splash, and the valves are stainless steel reed valves. The operating pressure is 8 bar, but for some models it can reach 10 bar. The control equipment includes: - Pressure switch with start-stop switch, safety valve, pressure reducer and pressure gauge.

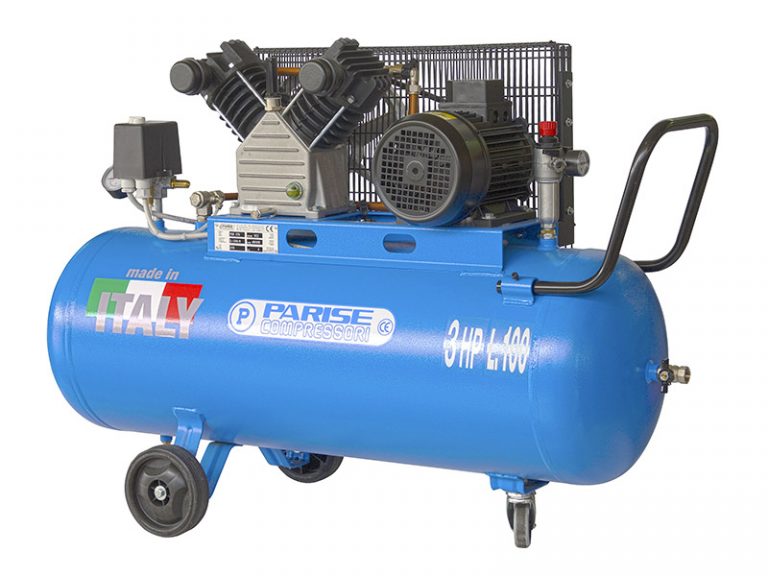

SINGLE-STAGE BELT-DRIVEN AIR COMPRESSORS

Single-cylinder or twin-cylinder air compressor connected to the electric motor by means of a V-belt with guard. Steel sheet tank with support feet or trolley, tested to CE standards. The fixed compressors do not have a pressure reducer, but a connection for the application of a reducer is provided on request.

TWO-STAGE BELT-DRIVEN COMPRESSORS

The compressors in this series are designed using cutting-edge technology: the two-stage technique guarantees 80% air production. Operating pressure of 10 bar. The crankshaft is made of hot-forged steel or spheroidal cast iron. Lubrication is automatic by splash. The success of these compressors is closely linked to the special cast iron alloy used in the construction of the cylinders and heads. The control equipment includes: - Pressure switch with start-stop switch, safety valve, pressure reducer and pressure gauge.

TANDEM COMPRESSORS

These models have been designed to ensure maximum continuity of compressed air supply with low electricity consumption. Each machine consists of two compressor units with two electric motors. The compressors are very robust machines, the cylinders and heads are made of special cast iron and the steel valves are high-performance disc type. The compressors operate automatically and alternately. An electrical device is contained in a metal box with timed motor protection switches or, on request, with star-delta starters and solenoid valve, switch lock and pressure switch. This device controls and monitors the proper functioning of the machine.

Request information

Wheeled compressors single-phase

code	model	tank	compressor pump	intake air l/1	power HP	power kW	RPM	pressure bar	Description	tension	noise level	weight	dimension
														CREATE PDF
1102230420	P 500TSL ST 400	500	P60/110P	1900	10+10	7,5+7,5	1150	10	AIR COMPRESSOR P 500 TSL YD V.400	400/3/50	83	371	197x60x120
1102230390	P 500THS ST 400	500	P52/105S	1500	7,5+7,5	5,5+5,5	1110	10	AIR COMPRESSOR P 500 THS YD V.400	400/3/50	78	290	197x60x117
1102230360	P 500SFtL ST 400	500	P60/110P	950	10	7,5	1150	10	AIR COMPRESSOR P 500 SFTL YD V.400	400/3/50	83	250	197x60x120
1102230350	P 500SFtL ST 230	500	P60/110P	950	10	7,5	1150	10	AIR COMPRESSOR P 500 SFTL YD V.230	230/3/50	83	250	197x60x120
1102230340	P 500SFtL	500	P60/110P	950	10	7,5	1150	10	AIR COMPRESSOR P 500 SFTL	400/3/50	83	250	197x60x120
1102230330	P 500FtH ST 400	500	P52/105S	750	7,5	5,5	1110	10	AIR COMPRESSOR P 500 FTH YD V.400	400/3/50	78	210	197x60x117
1102230320	P 500FtH ST 230	500	P52/105S	750	7,5	5,5	1110	10	AIR COMPRESSOR P 500 FTH YD V.230	230/3/50	78	210	197x60x117
1102230490	P 300 SFtS	270	P60/110	860	7,5	5,5	1035	10	COMPRESSORE P 300 SFTS HP 7,5 GRUPPO P 60/110	400/3/50	82	183	155x64x126
1102230560	P 300 SFtL S	270	P60/120	1200	10	7,5	1150	10	400/3/50	86	240	155x64x130	-
1102230060	P 200Ft	200	P52/105	605	4	3	900	10	AIR COMPRESSOR P 200 FT	400/3/50	77	120	143x57x117
1102230270	P 500Ft ST 400	500	P60/110	860	7,5	5,5	1035	10	AIR COMPRESSOR P 500 FT YD V.400	400/3/50	82	235	197x60x120
1102230280	P 500SFt	500	P60/120	1200	10	7,5	1150	10	AIR COMPRESSOR P 500 SFT	400/3/50	86	292	197x60x123
1102230020	P 150Ct	150	P43/85s	340	3	2,2	1000	10	AIR COMPRESSOR P 150 CT	400/3/50	73	80	128x51x94
1102230030	P 200ECt	200	P43/85s	340	3	2,2	1000	10	AIR COMPRESSOR P 200 ECT	400/3/50	73	96	143x53x97
1102230040	P 200ECX	200	P43/85s	380	4	3	1070	10	AIR COMPRESSOR P 200 ECX	400/3/50	73	97	143x53x97
1102230050	P 200Ct	200	P52/105	605	4	3	900	10	AIR COMPRESSOR P 200 CT	400/3/50	77	120	143x57x117
1102230070	P 300Ct	270	P52/105	605	4	3	900	10	AIR COMPRESSOR P 300 CT	400/3/50	77	134	155x64x123
1102230080	P 300SCt	270	P52/105	670	5,5	4	1000	10	AIR COMPRESSOR P 300 SCT	400/3/50	77	136	155x64x123
1102230312	P 300 SCtH	270	P52/105S	750	7,5	5,5	1110	10	COMPRESSORE P 300 SCTH GRUPPO P 52/105S HP 7,5	400/3/50	78	158	155x64x123
1102230090	P 300Ft	270	P52/105	605	4	3	900	10	AIR COMPRESSOR P 300 FT	400/3/50	77	134	155x64x123
1102230100	P 300SFt	270	P52/105	670	5,5	4	1000	10	AIR COMPRESSOR P 300 SFT	400/3/50	77	136	155x64x123
1102230311	P 300 SFtH	270	P52/105S	750	7,5	5,5	1110	10	COMPRESSORE P 300 SFTH GRUPPO P 52/105S HP 7,5	400/3/50	78	158	155x64x123
1102230290	P 500SFt ST 400	500	P60/120	1200	10	7,5	1150	10	AIR COMPRESSOR P 500 SFT YD V.400	400/3/50	86	292	197x60x123
1102210030	P 500Ft ST 230	500	P60/110	860	7,5	5,5	1035	10	AIR COMPRESSOR P 500 FT YD V.230	230/3/50	82	235	197x60x120
1102210050	P 500SFt ST 230	500	P60/120	1200	10	7,5	1150	10	AIR COMPRESSOR P 500 SFT YD V.230	230/3/50	86	292	197x60x123
1102230110	P 500Ft	500	P60/110	860	7,5	5,5	1035	10	AIR COMPRESSOR P 500 FT	400/3/50	82	235	197x60x120
1102230310	P 500FtH	500	P52/105S	750	7,5	5,5	1110	10	AIR COMPRESSOR P 500 FTH	400/3/50	78	210	197x60x117
1102230150	P 500TH ST 400	500	P52/105	1340	5,5+5,5	4+4	970	10	AIR COMPRESSOR P 500 TH YD V.400	400/3/50	77	280	197x60x117
1102230180	P 500TS ST 400	500	P60/110	1700	7,5+7,5	5,5+5,5	1035	10	AIR COMPRESSOR P 500 TS YD V.400	400/3/50	82	345	197x60x120
1102230260	P 300SFt ST 400	270	P52/105	670	5,5	4	1000	10	AIR COMPRESSOR P 300 SFT YD V.400	400/3/50	77	142	155x64x123
1102230271	P 300 SFtS ST 400	270	P60/110	860	7,5	5,5	1035	10	COMPRESSORE P 300 SFT YD V.400 GRUPPO P 60/110 HP 7,5	400/3/50	82	183	155x64x126
1102230313	P 300 SFtH ST 400	300	P52/105S	750	7,5	5,5	1110	10	COMPRESSORE P 300 SFTH YD GRUPPO P 52/105S HP 7,5	400/3/50	78	158	155x64x123
1102210080	P 300 SFtL S ST 230	270	P60/120	1200	10	7,5	1150	10	AIR COMPRESSOR P 300SFTL S YD V.230 P60/120	230/3/50	86	240	155x64x130
1102230272	P 300 SFtS ST 230	270	P60/110	860	7,5	5,5	1035	10	230/3/50	82	183	155x64x126	-
1102230315	P 300 SFtH ST 230	270	P52/105S	750	7,5	5,5	1110	10	230/3/50	78	158	155x64x123	-
1102230570	P 300 SFtL S ST 400	270	P60/120	1200	10	7,5	1150	10	400/3/50	86	240	155x64x130	-
1102210010	P 100Cm	100	P43/85s	310	3	2,2	900	8	AIR COMPRESSOR P 100 CM	230/1/50	73	78	117x47x88
1102210020	P 150Cm	150	P43/85s	310	3	2,2	900	8	AIR COMPRESSOR P 150 CM	230/1/50	73	80	128x51x94
1102210040	P 300Sft ST 230	270	P52/105	670	5,5	4	1000	10	AIR COMPRESSOR P 300 SFT YD V.230	230/3/50	77	142	155x64x123
1102230010	P 100Ct	100	P43/85s	340	3	2,2	1000	10	AIR COMPRESSOR P 100 CT	400/3/50	73	78	117x47x88

Single phase compressors

code	model	tank	compressor pump	intake air l/1	power HP	power kW	RPM	pressure bar	Description	tension	noise level	weight	dimension
														CREATE PDF
1101110100	P 25ACm	25	P52/1 Cm	120	1	0,75	1400	8	AIR COMPRESSOR P 25 ACM	230/1/50	66	28	79x34x50
1101110010	P 2CPH	2	P45/1 CHm	150	1,5	1,1	2800	8	AIR COMPRESSOR P 2 CPH	230/1/50	78	18	45x30x44
1101130030	P15Ft	15	P52/1Ct	120	1	0,75	1400	8	COMPRESSORE P 15 FT - HP 1	400/3/50	66	24	64x25x60
1101130070	P25SACt	25	P52/2Ct	240	2	1,5	1400	8	COMPRESSORE P 25 SACT - HP 2	400/3/50	72	35	79x34x50
1101130090	P100ACt	100	P52/2SCt	250	2,5	1,8	1400	8	COMPRESSORE P 100 ACT - HP 2,5	400/3/50	74	60	120x46x78
1101130100	P25ACt	25	P52/1Ct	120	1	0,75	1400	8	COMPRESSORE P 25 ACT - HP 1	400/3/50	66	28	79x34x50
1102130110	P50ACt	50	P52/2Ct	240	2	1,5	1400	8	COMPRESSORE P 50 ACT - HP 2	400/3/50	72	50	90X43X69
1101110020	P 6CPH	6	P45/1 CHm	150	1,5	1,1	2800	8	AIR COMPRESSOR P 6 CPH	230/1/50	78	19	33x34x63
1101110030	P 15Fm	15	P52/1 Cm	120	1	0,75	1400	8	AIR COMPRESSOR P 15 FM	230/1/50	66	24	64x25x60
1101110070	P 25SACm	25	P52/2 Cm	240	2	1,5	1400	8	AIR COMPRESSOR P 25 SACM	230/1/50	72	35	79x34x50
1101110080	P 50ACm	50	P52/2 Cm	240	2	1,5	1400	8	AIR COMPRESSOR P 50 ACM	230/1/50	72	50	90x43x69
1101110090	P 100ACm	100	P52/2 SCm	250	2,5	1,8	1400	8	AIR COMPRESSOR P 100 ACM	230/1/50	74	60	120x46x78

Compressors with tele-pressure switch

code	model	tank	compressor pump	intake air l/1	power HP	power kW	RPM	pressure bar	Description	tension	noise level	weight	dimension
														CREATE PDF
1102230410	P 500TSL ST 230	500	P60/110P	1900	10+10	7,5+7,5	1150	10	AIR COMPRESSOR P 500 TSL YD V.230	230/3/50	83	371	197x60x120
1102230400	P 500TSL	500	P60/110P	1900	10+10	7,5+7,5	1150	10	AIR COMPRESSOR P 500 TSL	400/3/50	83	371	197x60x120
1102230380	P 500THS ST 230	500	P52/105S	1500	7,5+7,5	5,5+5,5	1110	10	AIR COMPRESSOR P 500 THS YD V.230	230/3/50	78	290	197x60x117
1102230370	P 500THS	500	P52/105S	1500	7,5+7,5	5,5+5,5	1110	10	AIR COMPRESSOR P 500 THS	400/3/50	78	290	197x60x117
1102230140	P 500TH ST 230	500	P52/105	1340	5,5+5,5	4+4	970	10	AIR COMPRESSOR P 500 TH YD V.230	230/3/50	77	280	197x60x117
1102230170	P 500TS ST 230	500	P60/110	1700	7,5+7,5	5,5+5,5	1035	10	AIR COMPRESSOR P 500 TS YD V.230	230/3/50	82	345	197x60x120
1102230120	P 500T	500	P52/105	1210	4+4	3+3	872	10	AIR COMPRESSOR P 500 T	400/3/50	77	280	197x60x117
1102230130	P 500TH	500	P52/105	1340	5,5+5,5	4+4	970	10	AIR COMPRESSOR P 500 TH	400/3/50	77	280	197x60x117
1102230160	P 500TS	500	P60/110	1700	7,5+7,5	5,5+5,5	1035	10	AIR COMPRESSOR P 500 TS	400/3/50	82	345	197x60x120

Compressors single phase

code	model	tank	compressor pump	intake air l/1	power HP	power kW	RPM	pressure bar	Description	tension	noise level	weight	dimension
														CREATE PDF
1102130010	P 50CtX	50	P60/1	170	1,5	1,1	1240	8	AIR COMPRESSOR P 50 CTX	400/3/50	68	45	95x42x75
1102130020	P 50Ct	50	P52/2	200	1,5	1,1	1240	8	AIR COMPRESSOR P 50 CT	400/3/50	70	48	95x42x70
1102130030	P 50SCt	50	P60/2	280	2	1,5	1240	8	AIR COMPRESSOR P 50 SCT	400/3/50	71	48	95x42x70
1102130040	P 100ECt	100	P52/2	200	1,5	1,1	1240	8	AIR COMPRESSOR P 100 ECT	400/3/50	70	63	117x47x79
1102130050	P 100CtX	100	P60/2	280	2	1,5	1240	8	AIR COMPRESSOR P 100 CTX	400/3/50	71	63	117x47x79
1102130120	P 25 SCt	25	P52/2	200	1,5	1,1	1240	8	COMPRESSORE P 25 SCT - HP 1,5	400/3/50	71	36	87x33x63
1102130130	P 25 SCtX	25	P60/2	280	2	1,5	1240	8	COMPRESSORE P 25 SCTX - HP 2	400/3/50	71	40	84x34x60
1102130250	P 25 Ct	25	P52/1	120	1	0,75	1400	8	400/3/50	66	33	87x33x63	-
1102130260	P 25 CtX	25	P60/1	170	1,5	1,1	1240	8	400/3/50	68	34	87x33x63	-
1102110010	P 25Cm	25	P52/1	120	1	0,75	1400	8	AIR COMPRESSOR P 25 CM	230/1/50	66	33	87x33x63
1102110020	P 25CmX	25	P60/1	170	1,5	1,1	1240	8	AIR COMPRESSOR P 25 CMX	230/1/50	68	34	87x33x63
1102110030	P 25SCm	25	P52/2	200	1,5	1,1	1240	8	AIR COMPRESSOR P 25 SCM	230/1/50	71	36	87x33x60
1102110040	P 25SCmX	25	P60/2	280	2	1,5	1240	8	AIR COMPRESSOR P 25 SCMX	230/1/50	71	40	84x34x60
1102110050	P 50CmX	50	P60/1	170	1,5	1,1	1240	8	AIR COMPRESSOR P 50 CMX	230/1/50	68	45	95x42x75
1102110060	P 50Cm	50	P52/2	200	1,5	1,1	1240	8	AIR COMPRESSOR P 50 CM	230/1/50	70	48	95x42x70
1102110070	P 50SCm	50	P60/2	280	2	1,5	1240	8	AIR COMPRESSOR P 50 SCM	230/1/50	71	48	95x42x70
1102110080	P 100ECm	100	P52/2	200	1,5	1,1	1240	8	AIR COMPRESSOR P 100 ECM	230/1/50	70	63	117x47x79
1102110090	P 100CmX	100	P60/2	280	2	1,5	1240	8	AIR COMPRESSOR P 100 CMX	230/1/50	71	63	117x47x79
